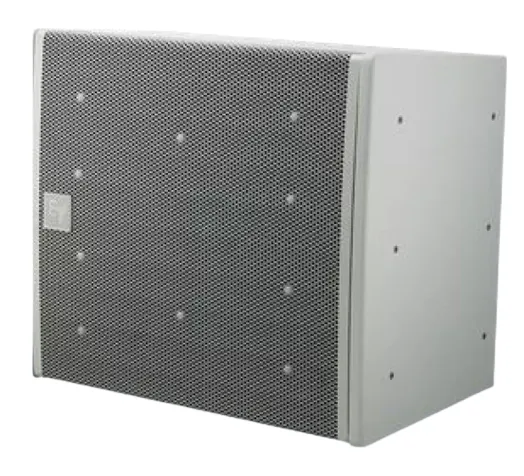

The Electro-Voice® EVA-2082S 350 watt (Passive) is a two-way multi-element loudspeaker system featuring dual Electro-Voice EVS2008 8" woofers, accompanied by four DH2005 high-frequency compression drivers mounted on two Hydra™ waveguides (available in four distinct coverage patterns: 90° x 6°, 90° x 20°, 120° x 6°, 120° x 20°). Passive operation only. Available in black or white, with a choice of three finishes: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass, for direct weather exposure).
Features
- High performance, cost-effective
- Ideal for fixed-installation line arrays
- Two array elements in each module
- Two 8-inch low-distortion woofers
- Four 1.25-inch titanium diaphragm HF drivers
- Advanced Hydra(R) plane wave generators
- High sensitivity (104 dB) for high output
- Super efficient: drive up to 8 boxes from a single amp channel
- Sixth-order passive crossover with HF protection
- Integrated hidden suspension hardware
- Choice of three finishes: indoor, PI and fiberglass
- EVADA (EVA Design Assistant) software tool
Specifications
| Frequency Range (-10 dB) | 45 - 20000kHz |
| Suspension | EVA Grid (Sold Separately) |
| Minimum Impedance | 12Ω |
| Nominal Impedance (Passive) | 16Ω |
| HF Transducer | (4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver |
| Speaker Type | Full-Range, Line-array |
| Frequency Response (-3 dB)¹ | 60 - 19000Hz |
| Max. SPL/1m (calc)² | 135dB |
| Coverage (Nominal -6 dB) H | 90° |
| LF Transducer | (2) EVS2008, 8 In (203mm) Driver |
| Coverage (Nominal -6 dB) V | 6° |
| System Power Handling (Continuous/Program/Peak) | 350, 700, 1400Watts |
| Crossover Frequency | 1740Hz |
| Enclosure Material | Birch plywood |
| Grille | 16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth |
| Sensitivity 1 W/1 m | 104dB |
| Height | 514.4mm (20.25") |
| Width | 596.9mm (23.5") |
| Recommended High-Pass Frequency | 50Hz |
| Depth | 358.2mm (14.1") |
| Weight Net | 37.1kg (81.79 lbs) |
| Passive Power Handling | 1400W peak |
| Input Connections | Phoenix/Euroblock style screw terminals |
